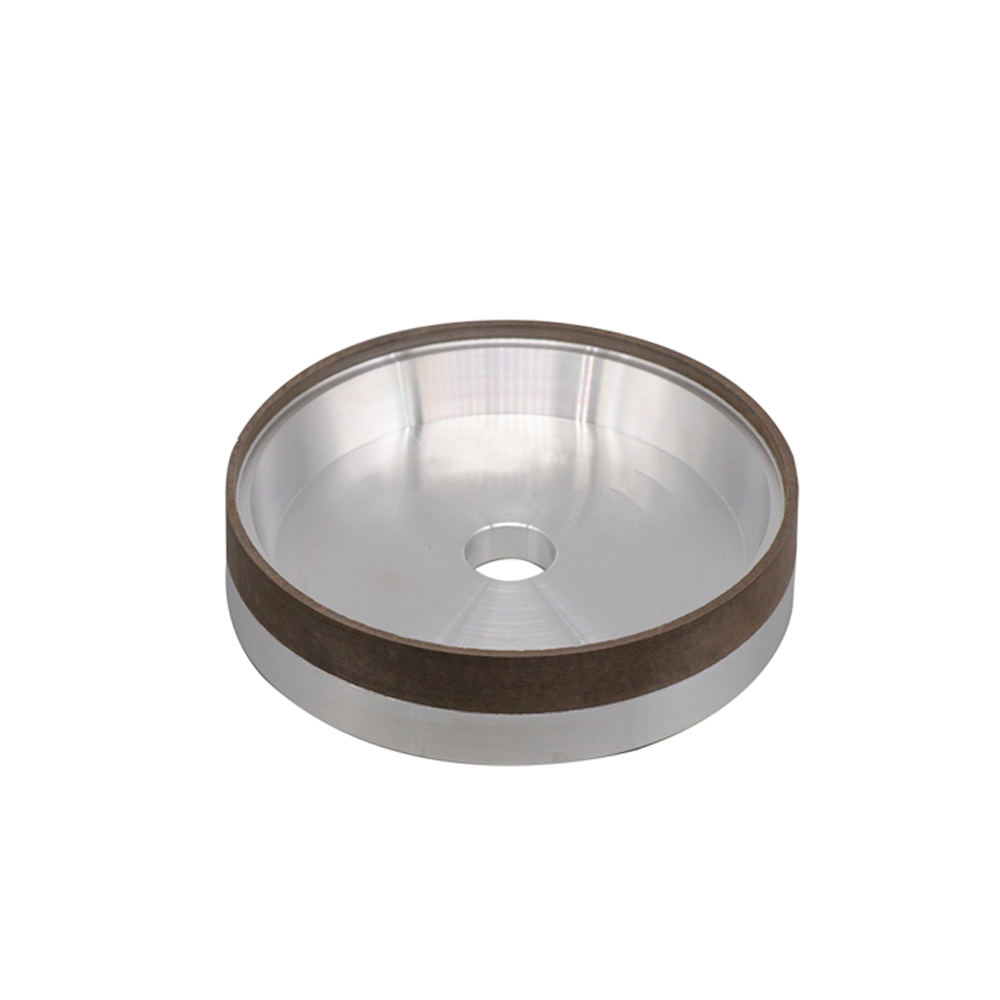

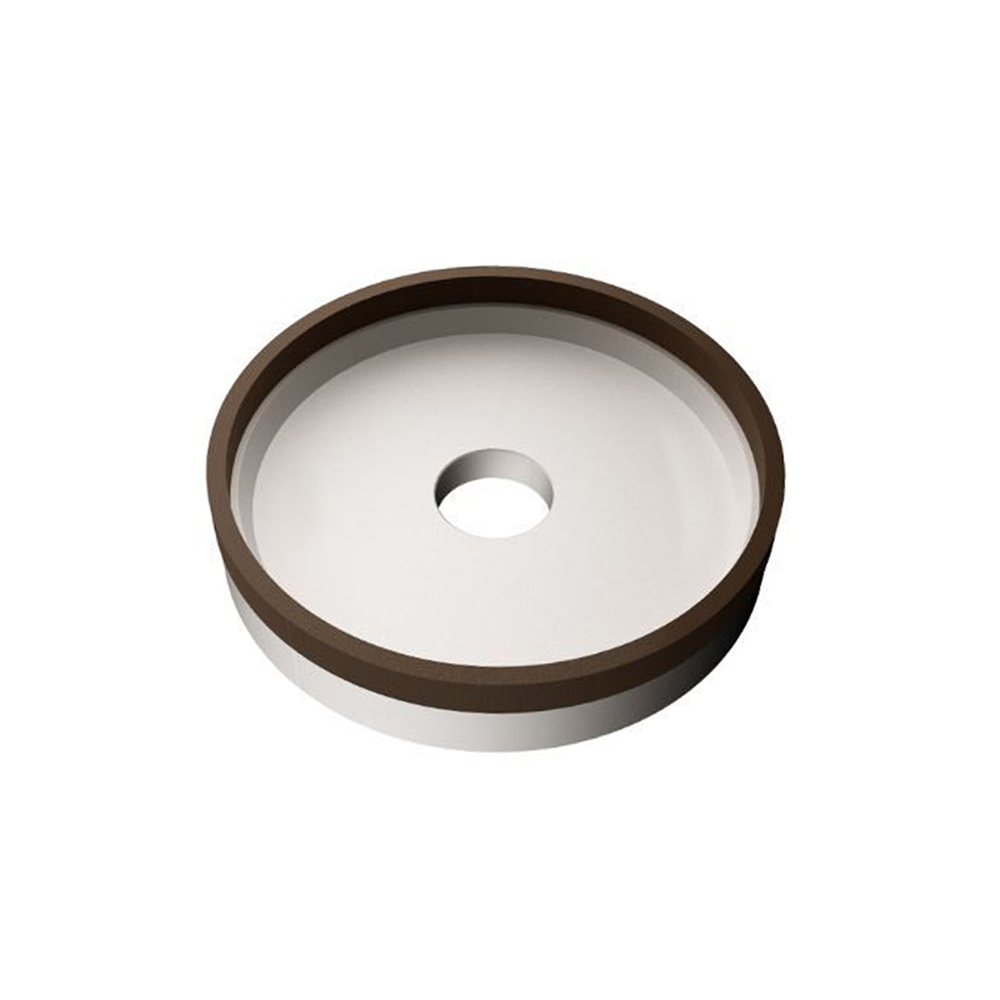

6A9 Grinding Wheels
6A9
Quantity
6A9 Tool Grinding Wheels
For Chip Breaker,Rake face
Diameter 50-150 mm
Bond:Diamond OR CBN
Grit:D64-D126,B91-B151
Other dimensions available on request - Please indicate required D W X and H

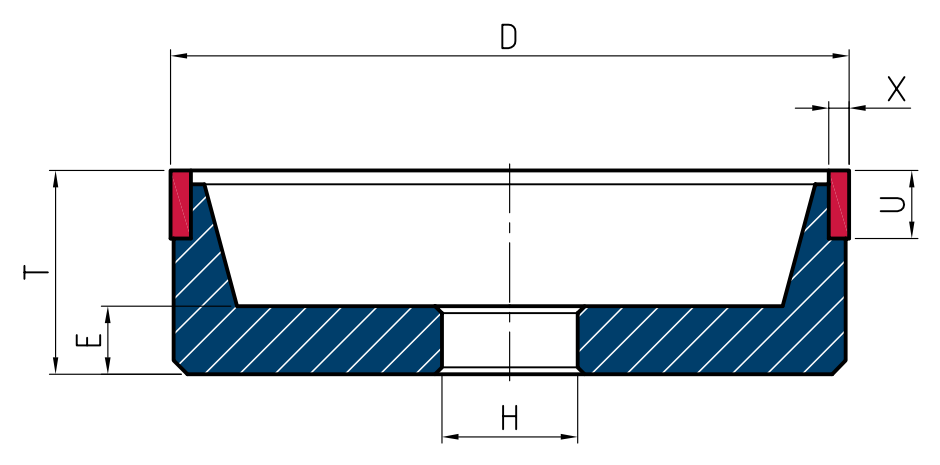

| D | U | X | T-X | E | H |
| 50 | 6-10 | 2-3 | 25 | 10 | Custom |
| 75 | 25 | 10 | |||
| 100 | 29 | 10 | |||
| 125 | 29 | 10 | |||
| 150 | 33 | 13 |
6A9 Saw Grinding Wheels
For Side Clearance
Diameter 75-100 mm
Bond:Diamond
Grit:D76-D91
Other dimensions available on request - Please indicate required D W X and H
| D | U | X | T | E | H |
| 75 | 6-10 | 2-4 | Custom | ||
| 100 | |||||
