4F9 Tool Grinding Wheels
4F9
Quantity

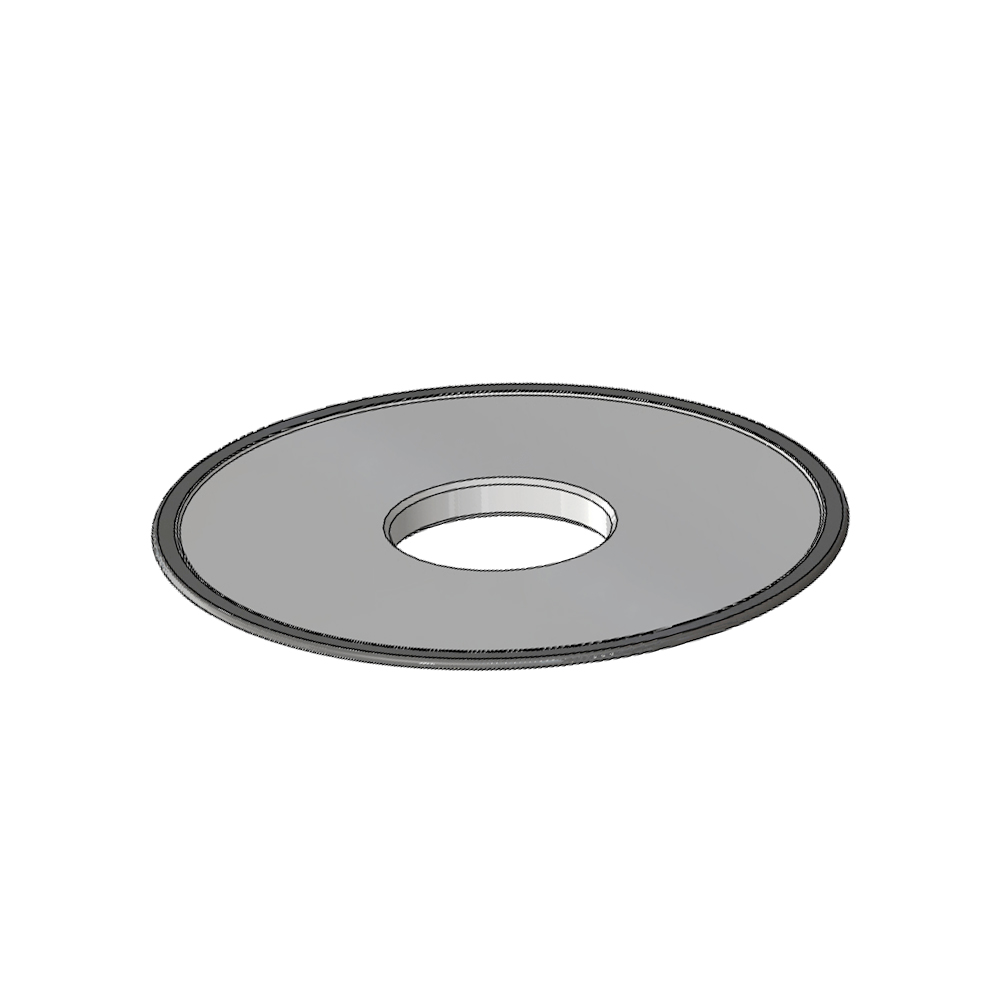

4F9 Tool Grinding Wheels
For Rake faces of HSS tools
The wheels can be used in Agathon, Anca, Deckel, Haas, Hawema, ITM, Kirner, Reinecker, Rollomatic, Saacke, Schneeberger, Schutte, Strausak, Walter, others
Diameter 75-150mm
Bond: CBN
Grit:B151

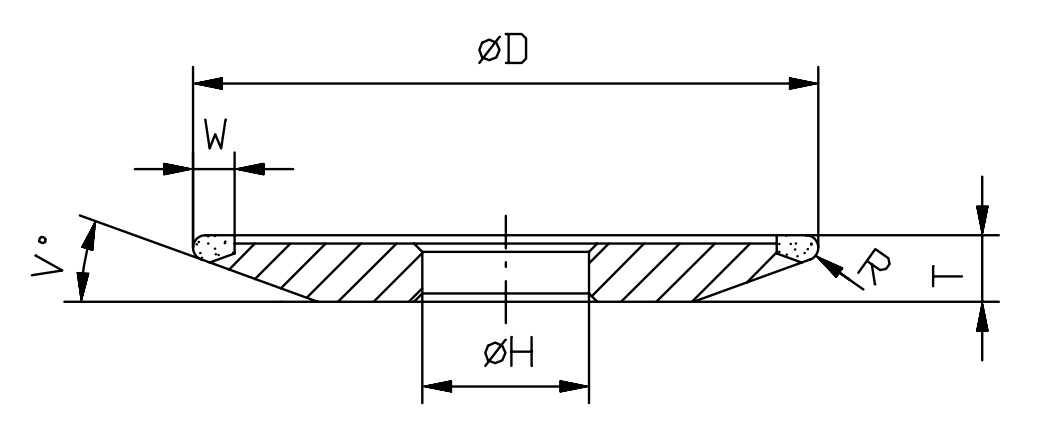

Other dimensions available on request - Please indicate required D U X R and H
| D | W | X | R | H | J | T |
| 75 | 3 | 2.2 | 1 | Custom | 6 | |
| 75 | 5 | 4.4 | 2 | 6 | ||
| 100 | 3 | 2.2 | 1 | 6 | ||
| 100 | 5 | 4.4 | 2 | 6 | ||
| 125 | 5 | 4.4 | 2 | 8 | ||
| 150 | 5 | 4.4 | 2 | 8 | ||
