3V1 Grinding Wheels
3V1
Quantity

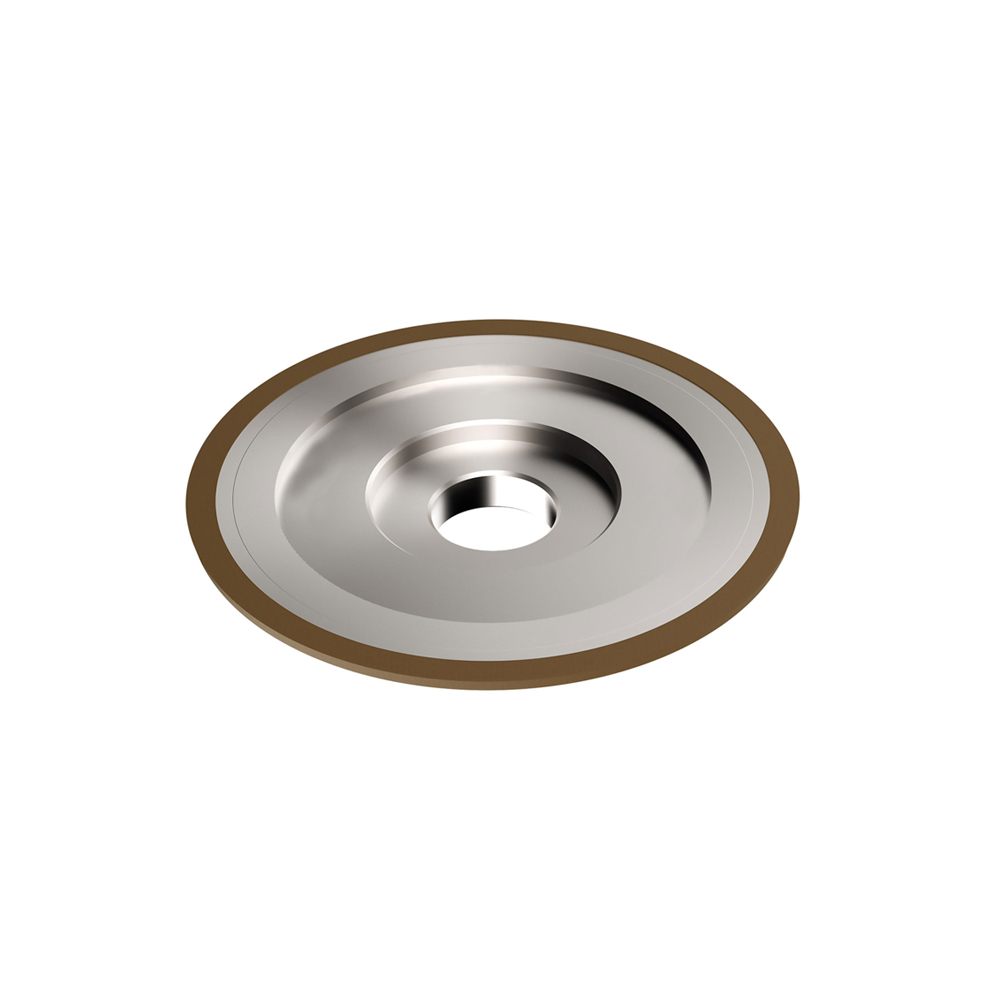

3V1 Tool Grinding Wheels
For Flutes, relief angles on front and periphery,reduction of cutting edge
Diameter 75-175mm
Bond:Diamond OR CBN
Grit:D64-D126,B126

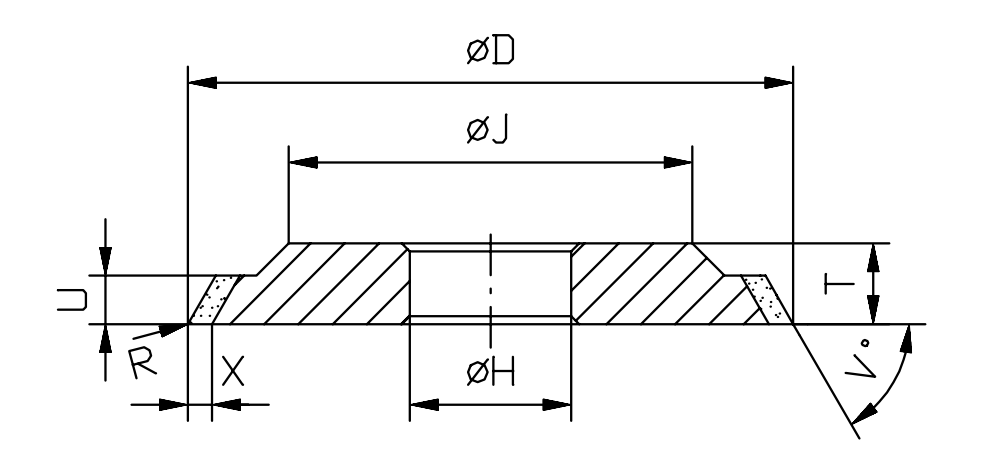

Other dimensions available on request - Please indicate required D U X V° and H
| D | U | X | V° | H |
| 75 | 6-10 | 5 | 30-89 | custom |
| 100 | 4-18 | |||
| 125 | 4-20 | |||
| 150 | 8-20 | |||
| 175 | 8-20 |

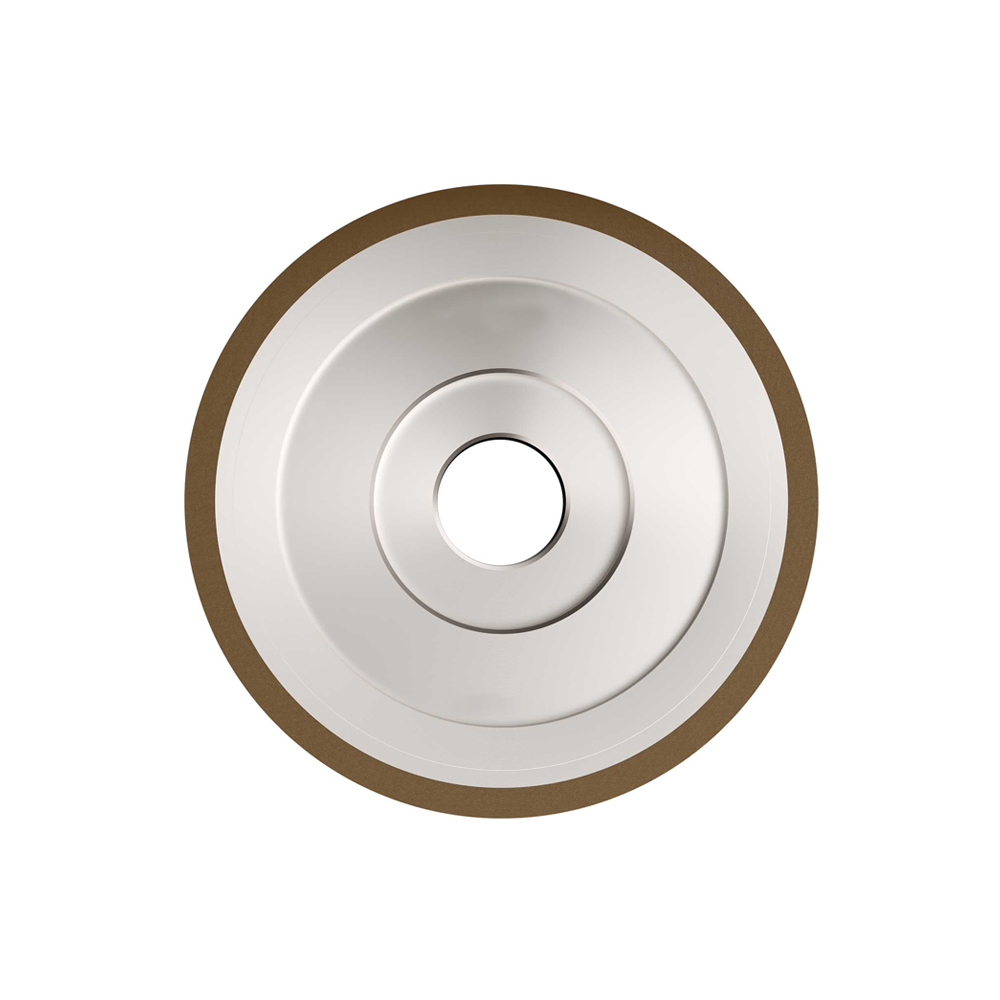

3V1 Saw Grinding Wheels
For Chamfering of teeth
Diameter 200mm
Bond:CBN
Grit:B126-B181
Other dimensions available on request - Please indicate required D U X V° and H
| D | U | X | V° | H |
| 200 | 1.5 | 2 | 75 | custom |
| 2 | ||||
| 3 |
