14V1 Grinding Wheels
14V1
Quantity

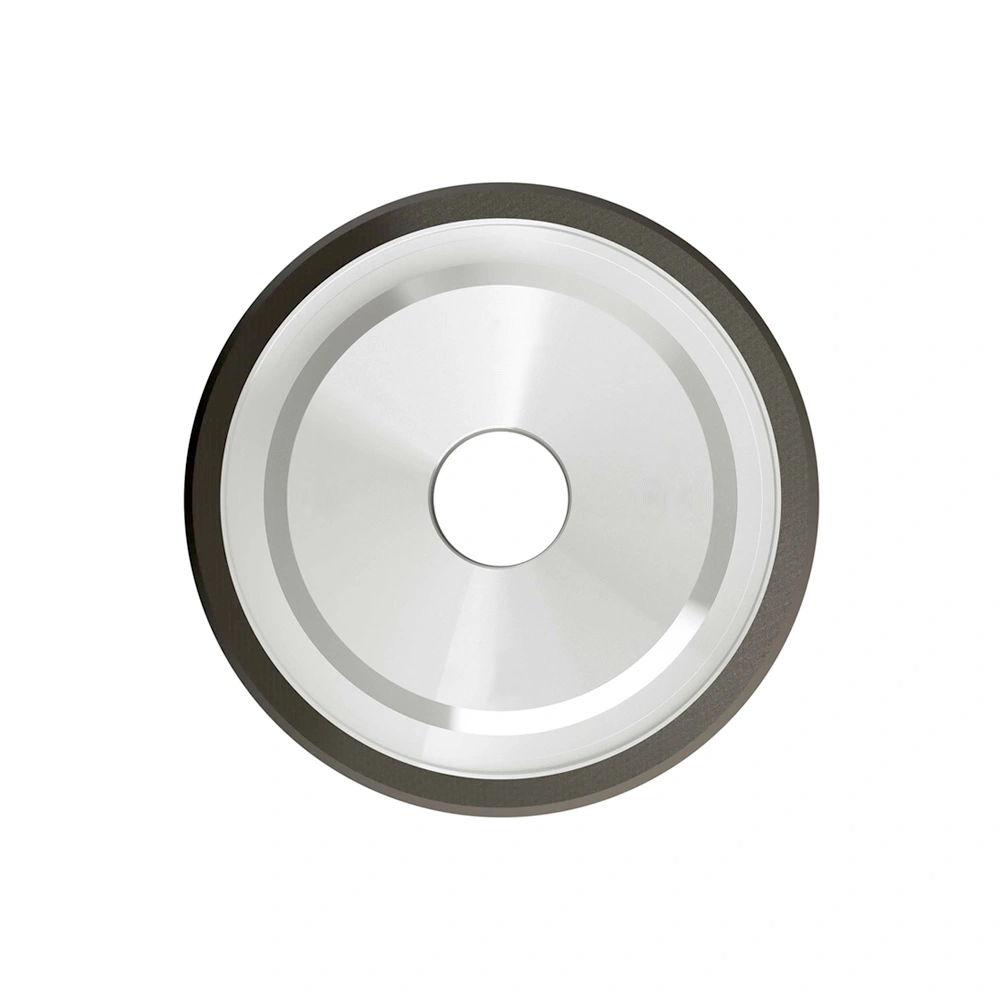

14V1 Tool Grinding Wheels
For Flutes, relief angles on front and periphery, reduction of cutting edge
Diameter 75-175mm
Bond:Diamond OR CBN
Grit:D64-D126,B126

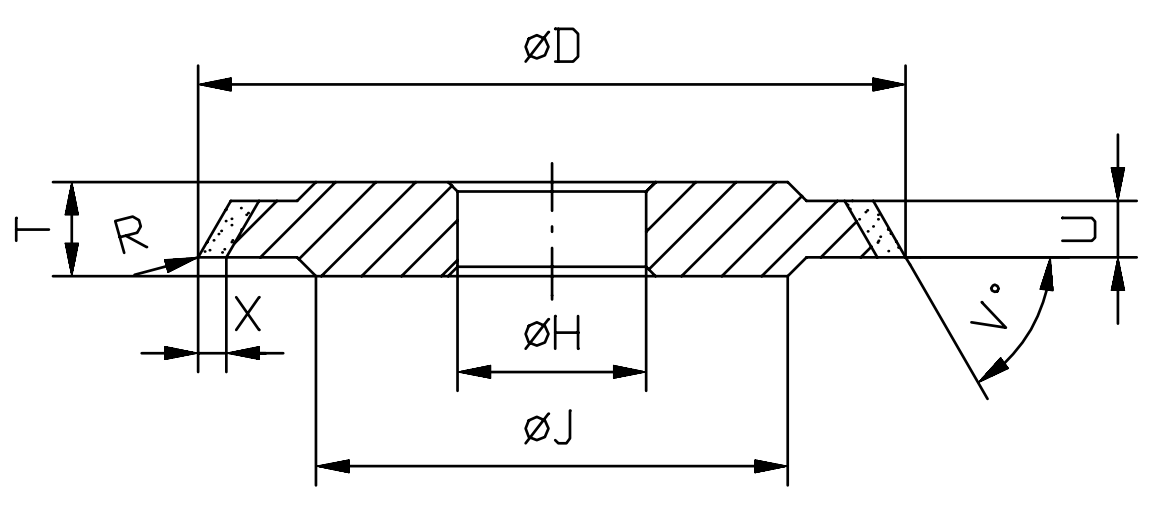

Other dimensions available on request - Please indicate required D U X V° and H
| D | U | X | V° | H |
| 75 | 6-10 | 5 | 30-89 | custom |
| 100 | 4-18 | |||
| 125 | 4-20 | |||
| 150 | 8-20 | |||
| 175 | 8-20 |

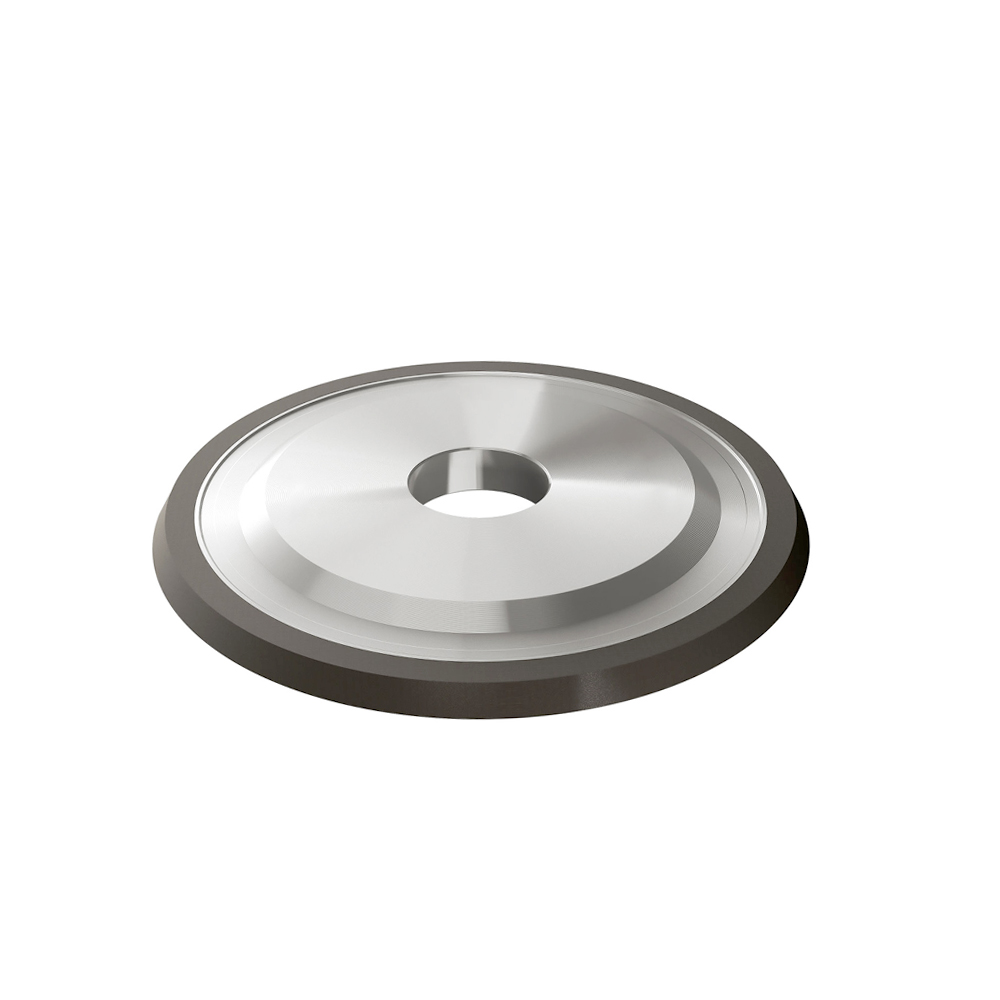

14V1 Saw Grinding Wheels
For Teeth of saw blades
The wheels can be used in AHS, AKE, Businaro, Loroch, Vollmer, Walter, others
Diameter 150-200mm
Bond:Diamond OR CBN
Grit:D107,B107
Other dimensions available on request - Please indicate required D U X V° and H
| D | U | X | V° | H |
| 150 | 3 | 6.0 | 28 | Custom |
| 7.5 | 30 | |||
| 7.5 | 45 | |||
| 200 | 6-7.5 | 30 | ||
| 6-7.5 | 45 |
