14A1 Grinding Wheels
14A1
Quantity

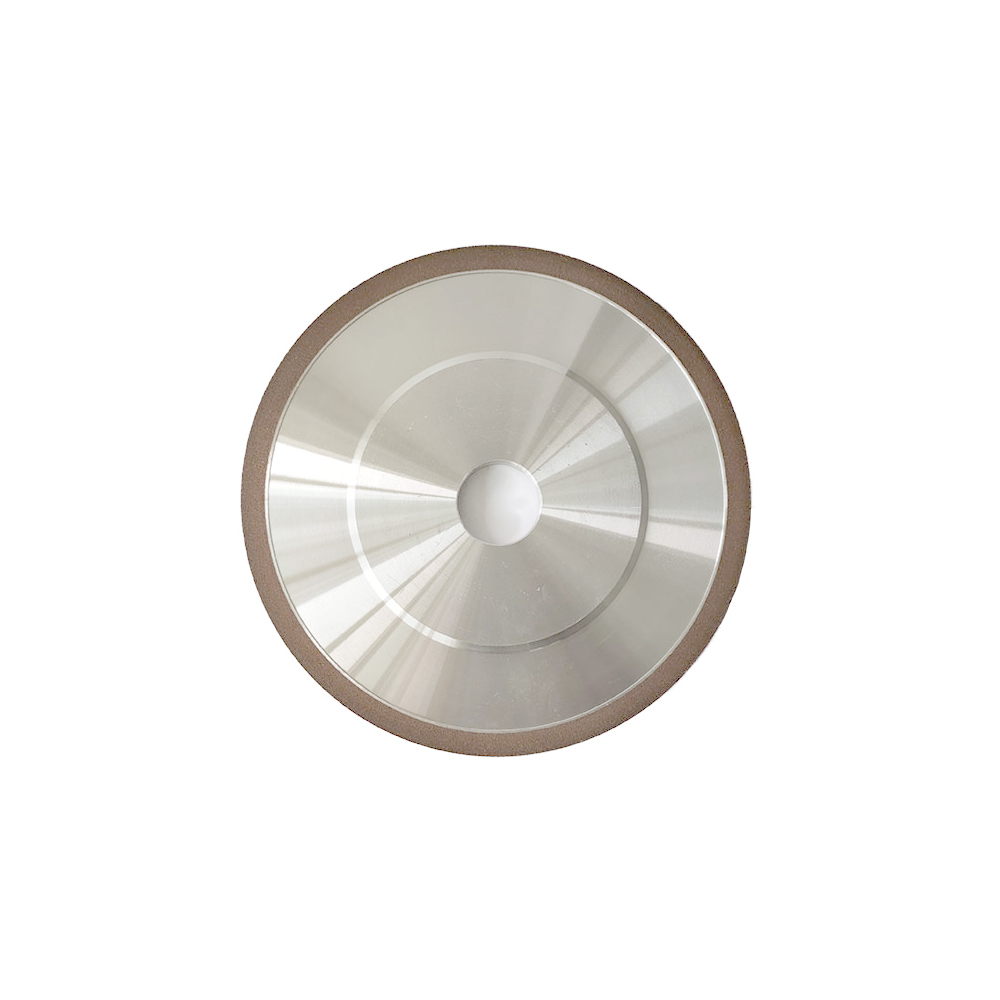

14A1 O.D. Grinding Wheels
For Extermal Cylindrical Grinding
The wheels can be used in Aba,Fortuna,Karstens,Kellenberger,Overbeck,Studer,Techella,others
Diameter 150-400 mm
Bond:Diamond OR CBN
Grit:D46-D126,B91-B151

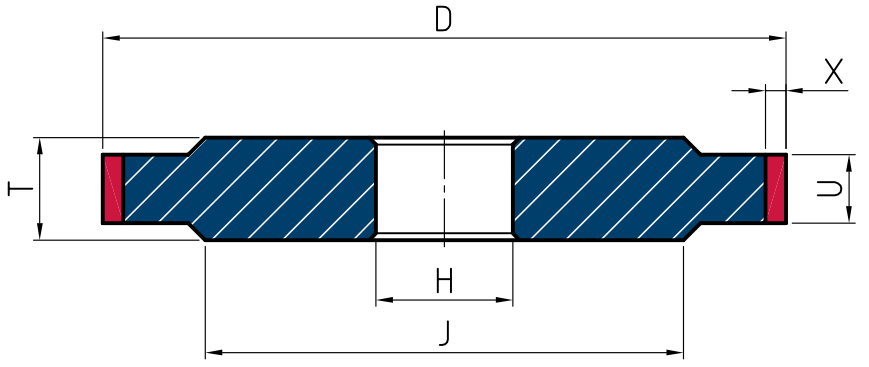

Other dimensions available on request - Please indicate required D U X and H
| D | U | X | H |
| 150-200 | 2-20 | 5 | Custom |
| 200-250 | 2-30 | 5 | |
| 250-400 | 4-40 | 5-10 |

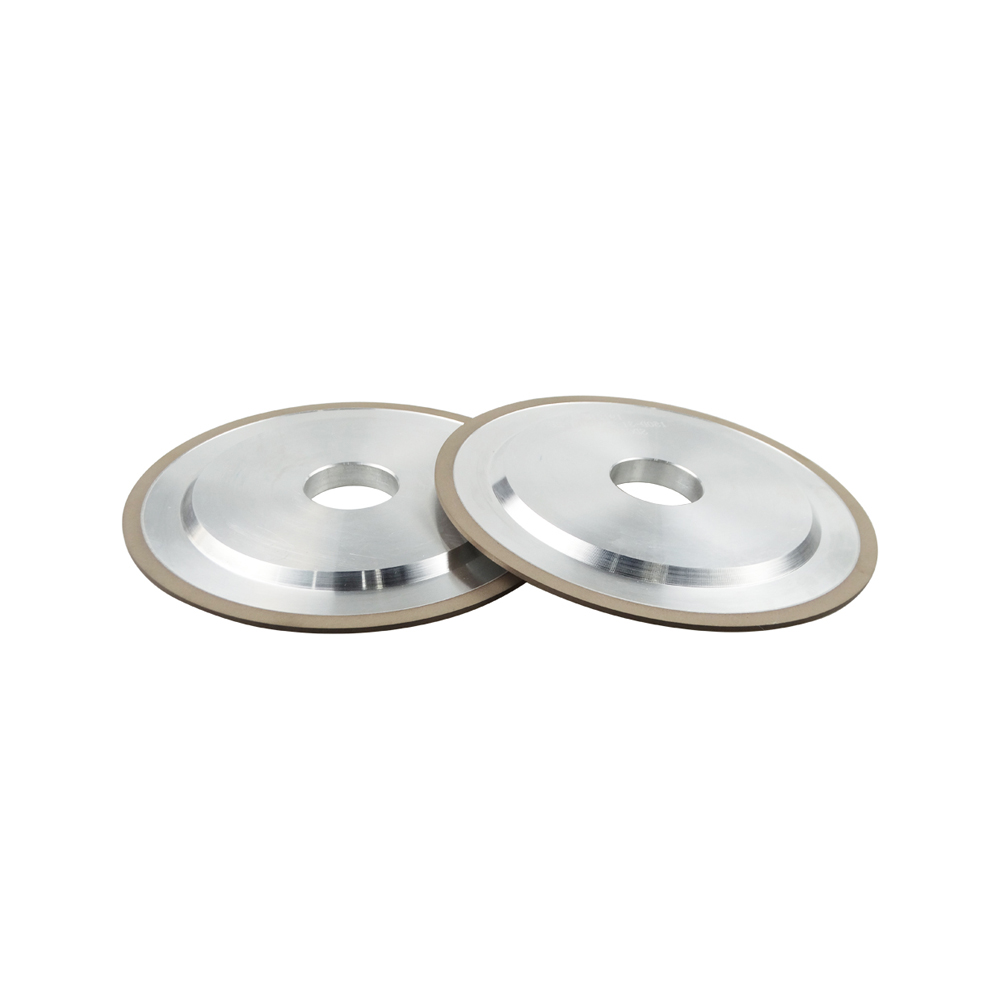

14A1 Peel Grinding Wheels
The wheels can be used in Junker,UWS Reinecker,others
Diameter 100-600 mm
Bond:Diamond OR CBN
Grit:Custom
Other dimensions available on request - Please indicate required D U X and H
| D | U | X | H |
| 200 | 4 | 5 | Custom |
| 350-400 | 4 | 5-8 | |
| 5 | |||
| 6 |

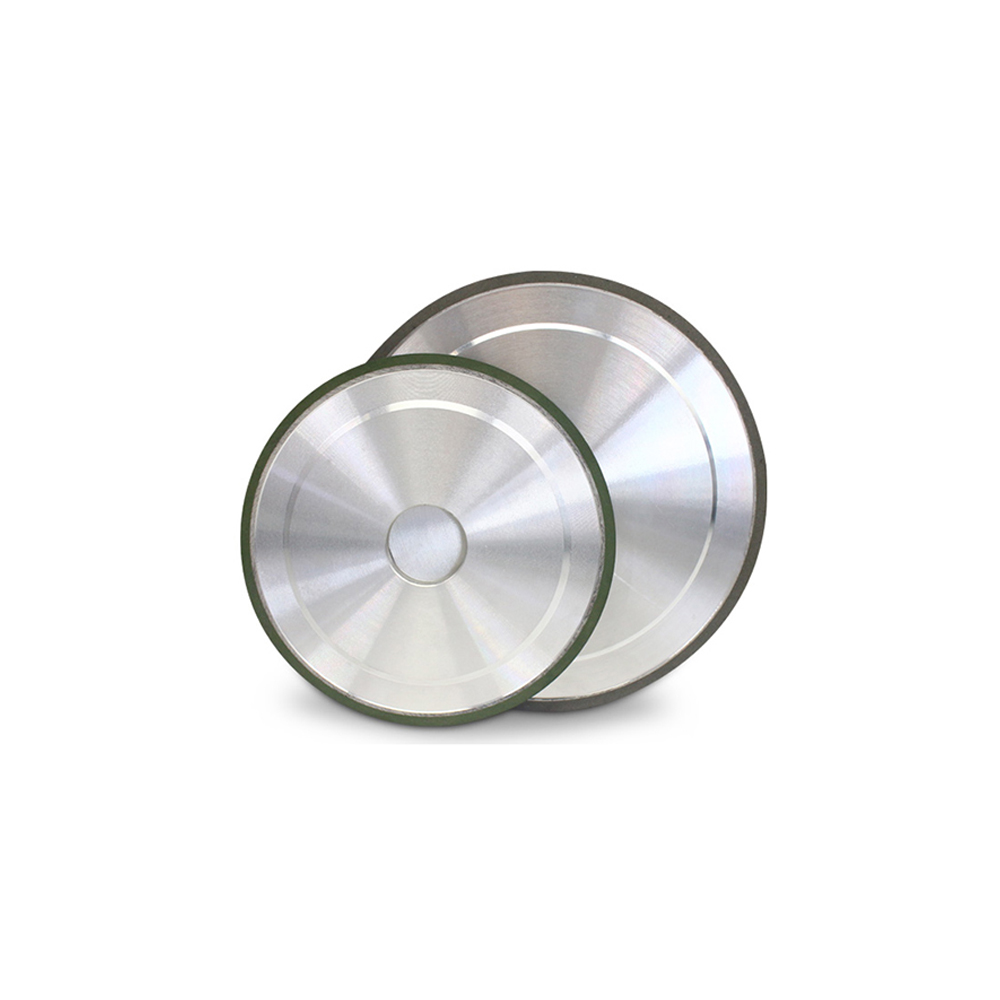

14A1 Tool Grinding Wheels
Diameter 50-150 mm
Bond:Diamond OR CBN
Grit:D64-D126,B126
Other dimensions available on request - Please indicate required D U X and H
| D | U | X | H |
| 50 | 4-8 | 5 | Custom |
| 75 | 4-15 | 5 | |
| 100 | 4-20 | 5 | |
| 125 | 4-20 | 5 | |
| 150 | 4-20 | 5 |

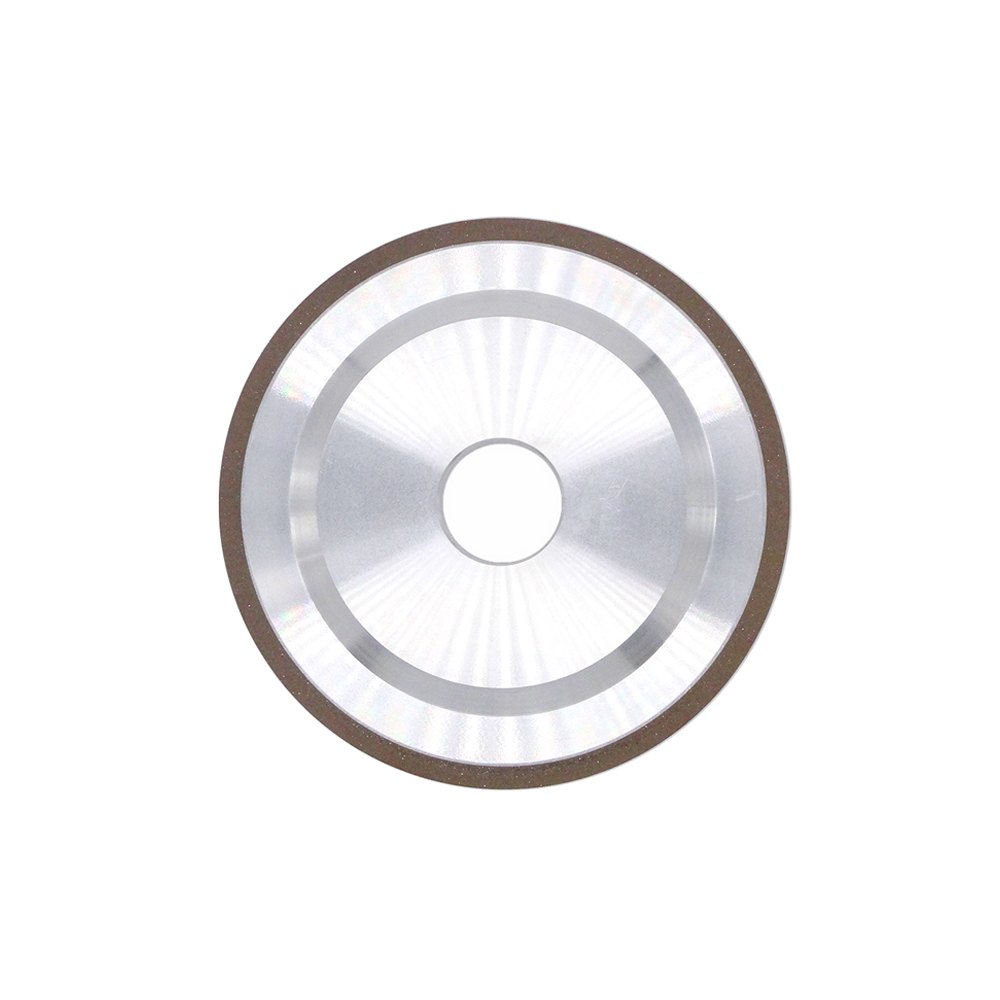

14A1 Saw Grinding Wheels
The wheels can be used in AHS,AKE,Businaro,Loroch,Vollmer,Walter,others
Diameter 200mm
Bond:CBN
Grit:B151-B252
Other dimensions available on request - Please indicate required D U X and H
| D | U | X | H |
| 200 | 1-8 | 2-5 | Custom |
