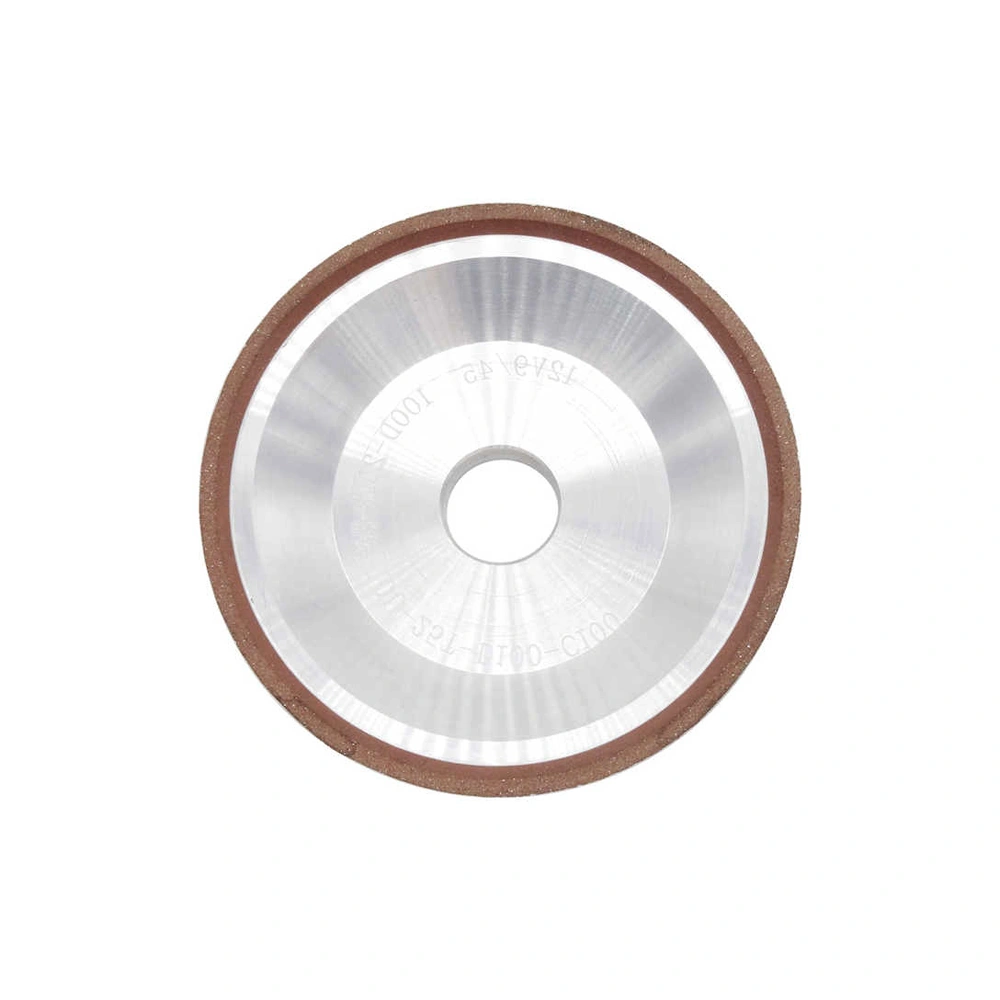

12V9 Tool Grinding Wheels
12V9
Quantity
12V9 Tool Grinding Wheels
For Rake faces, relief angles on front and periphery, reduction of cutting edge
Diameter 50-150mm
Bond:Diamond OR CBN
Grit:D64-D126,B126-B181

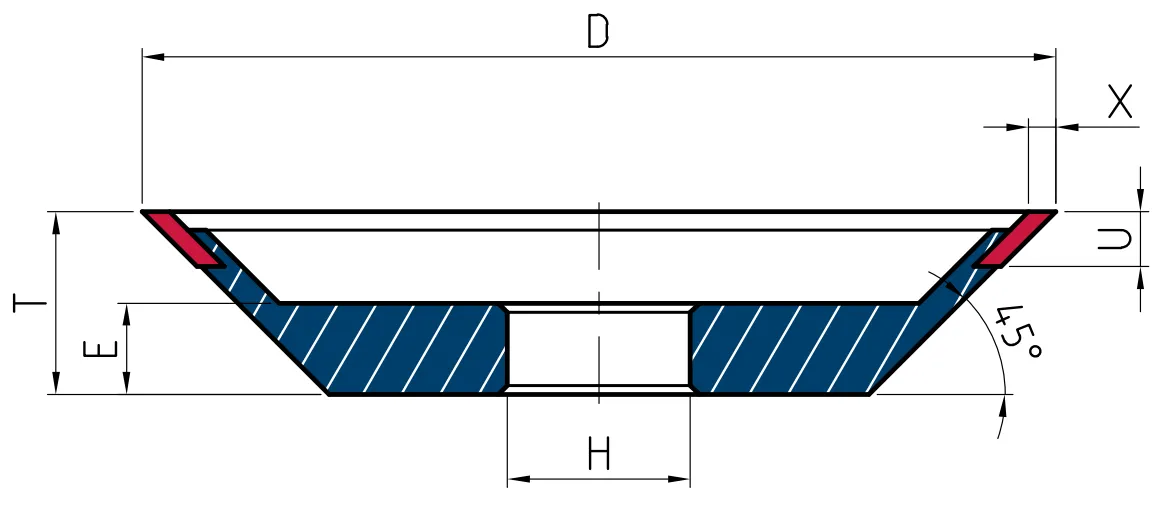

Other dimensions available on request - Please indicate required D U X T E and H
| D | U | X | T | E | H |
| 50 | 2 | 5 | 20 | 10 | Custom |
| 75 | 2-3 | 10 | 22 | 10 | |
| 75 | 2-3 | 10 | 22 | 10 | |
| 100 | 2-3 | 10 | 22 | 10 | |
| 100 | 2-3 | 10 | 22 | 12 | |
| 125 | 2-3 | 10 | 25 | 10 | |
| 125 | 2-3 | 10 | 22 | 12 | |
| 150 | 2-3 | 10 | 30 | 12 |
