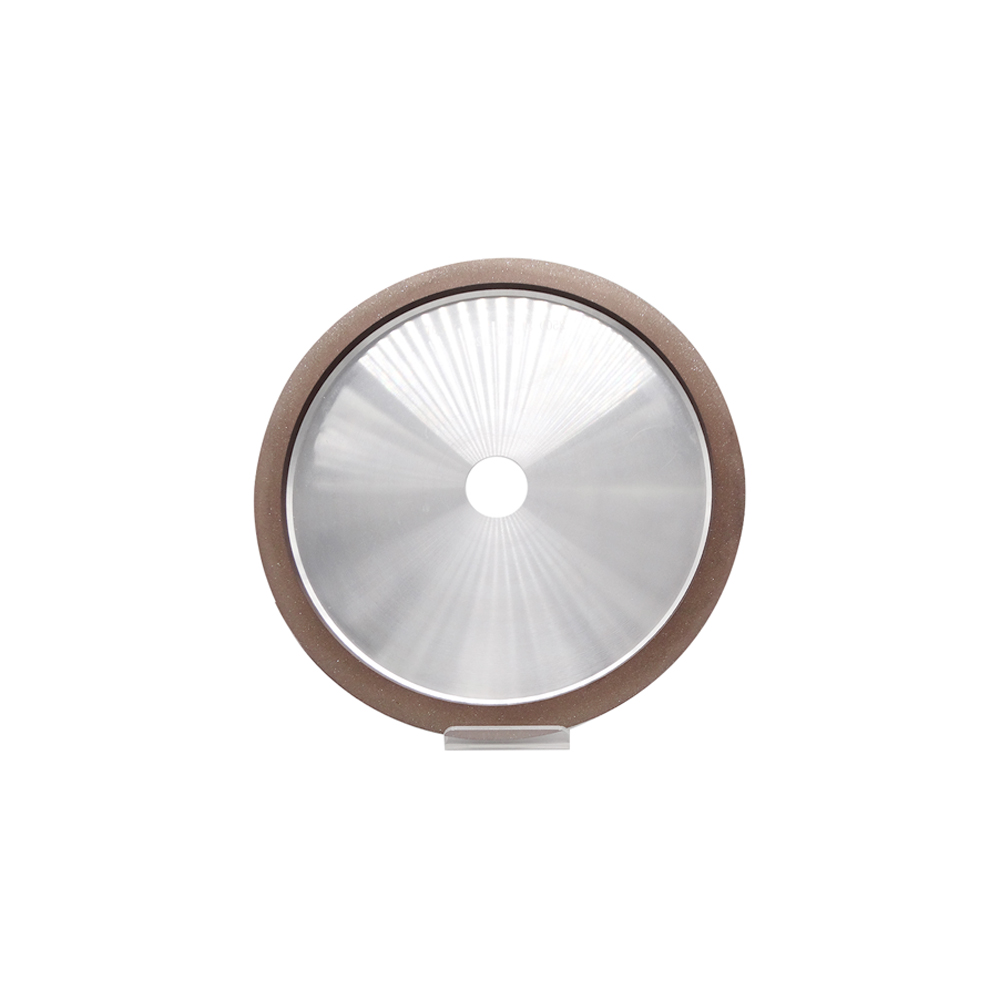

12C9 Tool Grinding Wheels
12C9
Quantity
12C9 Tool Grinding Wheels
For Chip breakers, geometry on turning and planing tools
The wheels can be used in Agathon, Anca, Deckel, Haas, Hawema, ITM, Kirner, Reinecker, Rollomatic, Saacke, Schneeberger, Schutte, Strausak, Walter, others
Diameter 100-150mm
Bond: DIA or CBN
Grit:D91-D126, B126-B151

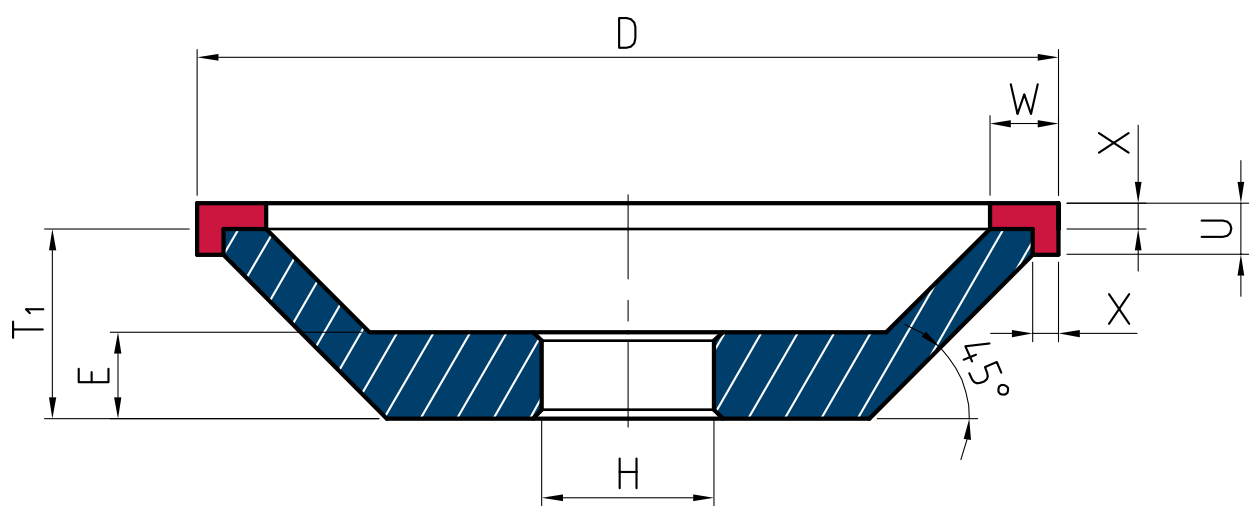

Other dimensions available on request - Please indicate required D U X R and H
| D | W | X/X1 | U | H | T | E |
| 100 | 10 | 2 | 4 | Custom | 25 | 10 |
| 125 | 10-12.5 | |||||
| 150 | 10-15 |
