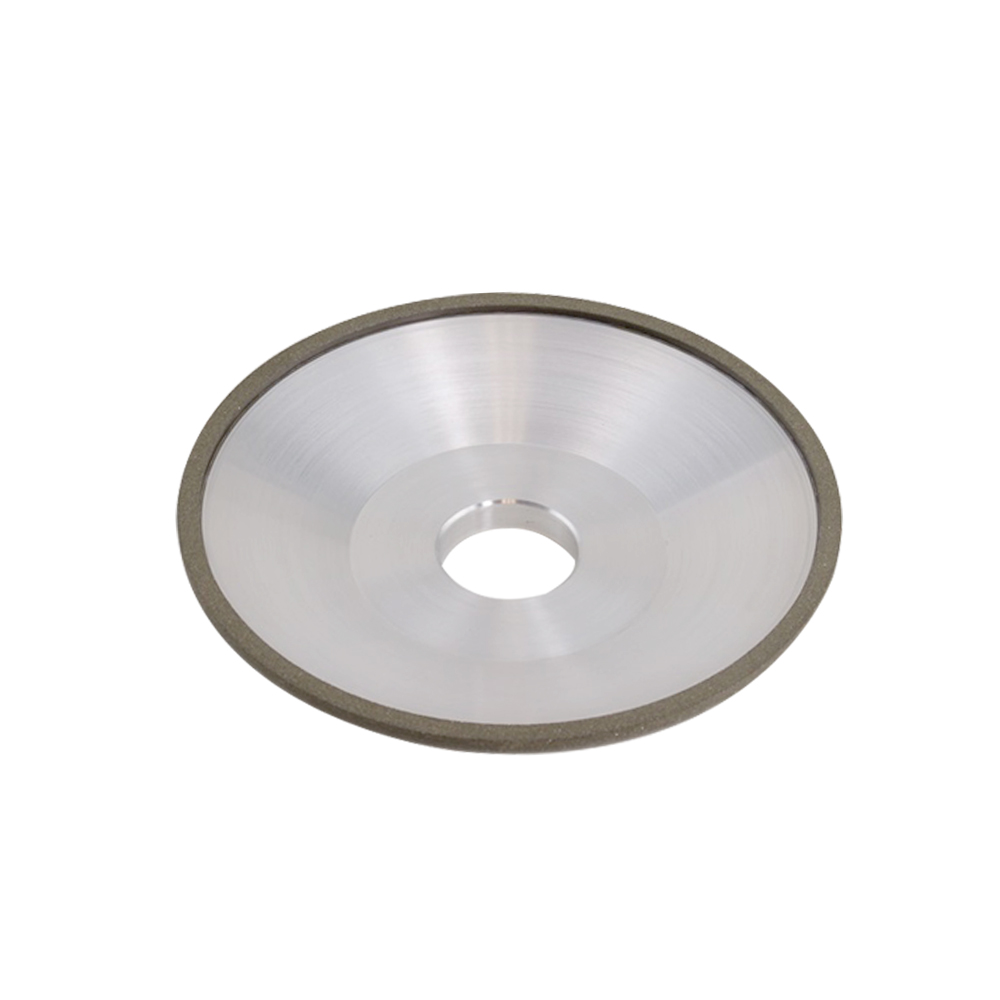

12A2 Grinding Wheels
12A2
Quantity

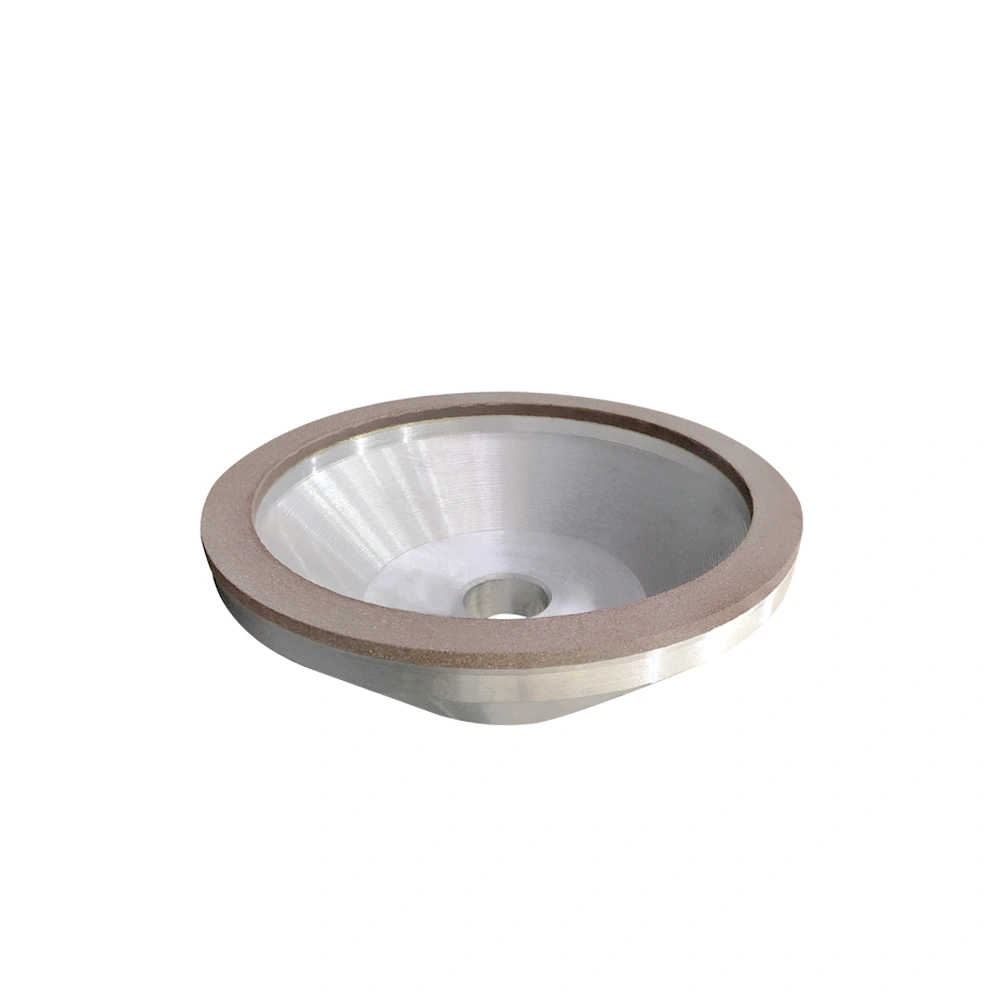

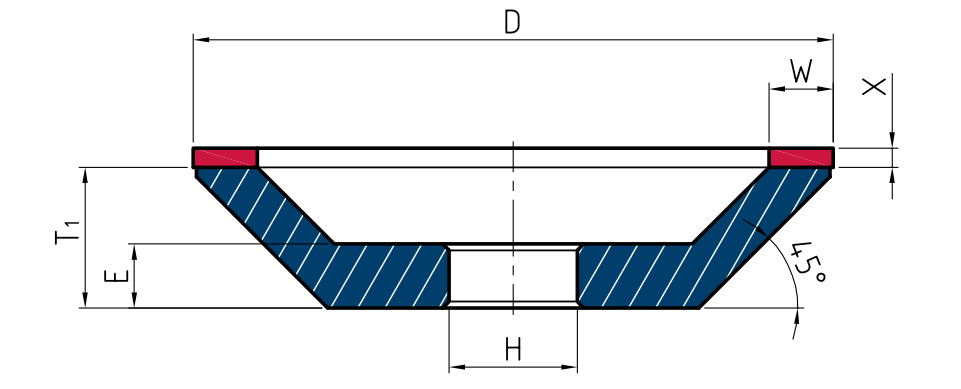

12A2-45° Tool Grinding Wheels
For Cutting geometry on turning and planing tools, graving tools
Diameter 75-175mm
Bond:Diamond OR CBN
Grit:D64-D126,B126-B151
Other dimensions available on request - Please indicate required D U X V° and H
| D | W | X | T-X | E | H |
| 75 | 3-10 | 2-4 | 19 | 10 | Custom |
| 100 | 3-15 | 23 | |||
| 125 | 5-15 | 23 | |||
| 150 | 5-20 | 23 | |||
| 175 | 10-20 | 23 | 12 |
12A2-20° Tool Grinding Wheels
For Rake face
Diameter 75-175mm
Bond:Diamond OR CBN
Grit:D64-D126,B126-B151
Other dimensions available on request - Please indicate required D W X E T and H
| D | W | X | T-X | E | H |
| 75 | 3-10 | 2-4 | 8 | 6 | Custom |
| 100 | 3-10 | 11 | 6 | ||
| 125 | 5-10 | 15 | 8 | ||
| 150 | 4-10 | 15 | 8 | ||
| 175 | 5-15 | 19 | 10 |

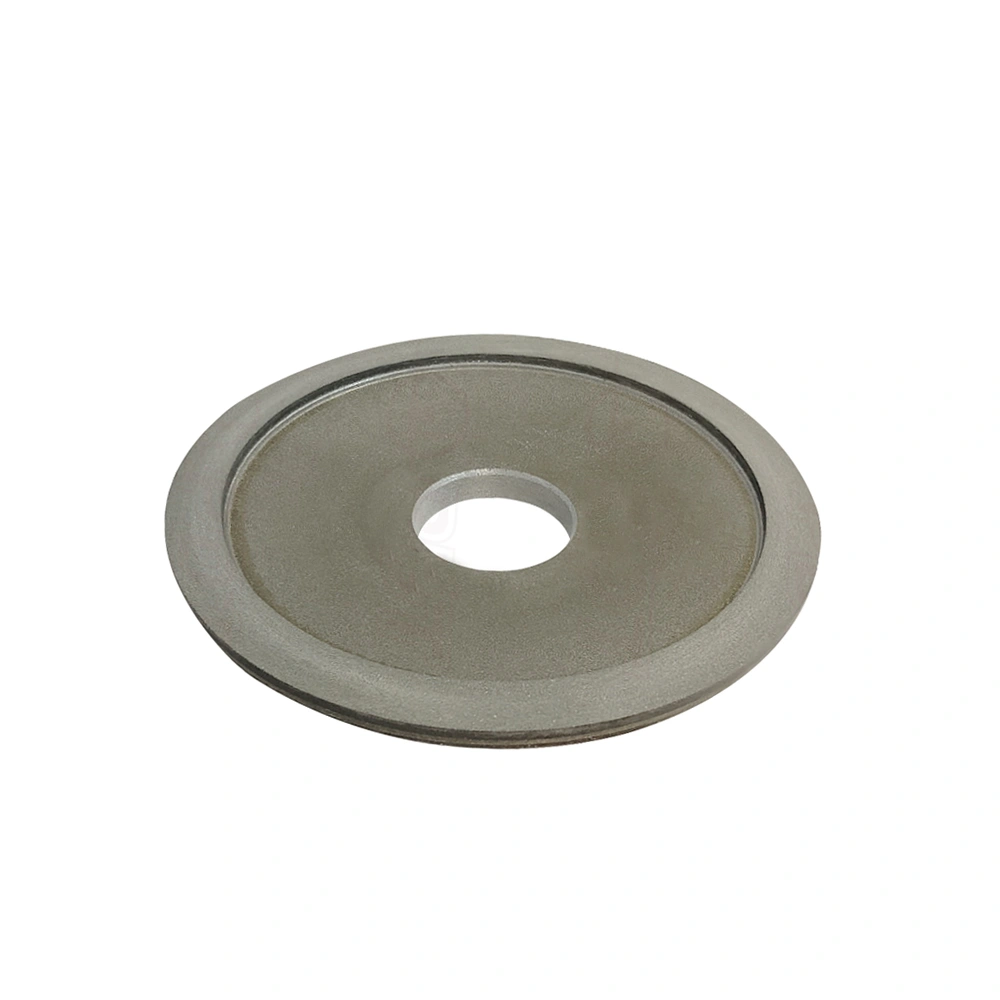

12A2S Tool Grinding Wheels
For Rake face
Diameter 125mm
Bond:Diamond OR CBN
Grit:D46-D126,B151
Other dimensions available on request - Please indicate required D W X E T and H
| D | W | X | T | E | H |
| 125 | 5 | 4 | 23 | 9 | Custom |
