11V9 Grinding Wheels
11V9
Quantity

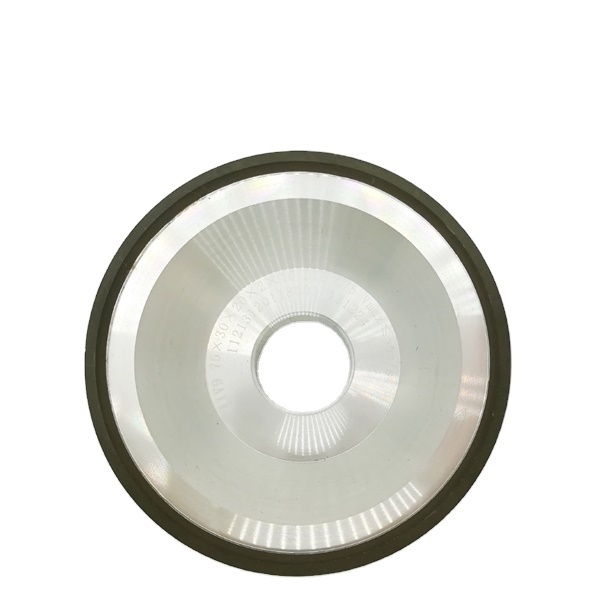

11V9 Tool Grinding Wheels
For Rake faces, relief angles on front and periphery, reduction of cutting edge
Diameter 30-150mm
Bond:Diamond OR CBN
Grit:D64-D126,B126-B181

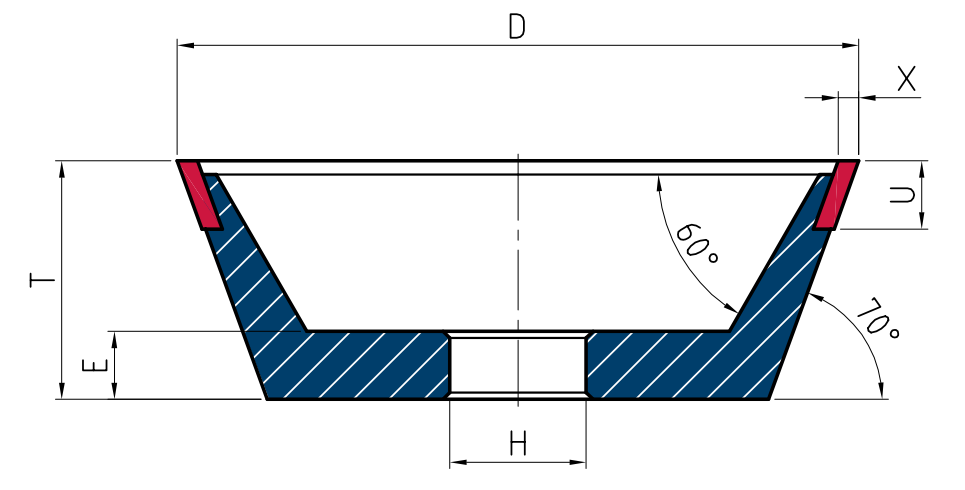

Other dimensions available on request - Please indicate required D U X T E and H
| D | U | X | T | E | H |
| 30 | 2 | 5 | 16 | 10 | Custom |
| 40 | 2 | 5 | 20 | 10 | |
| 50 | 2 | 5 | 30 | 10 | |
| 75 | 2-3 | 10 | 30 | 10 | |
| 75 | 30 | 12 | |||
| 100 | 35 | 10 | |||
| 100 | 35 | 12 | |||
| 125 | 40 | 10 | |||
| 125 | 40 | 12 | |||
| 150 | 50 | 10 | |||
| 150 | 50 | 14 |

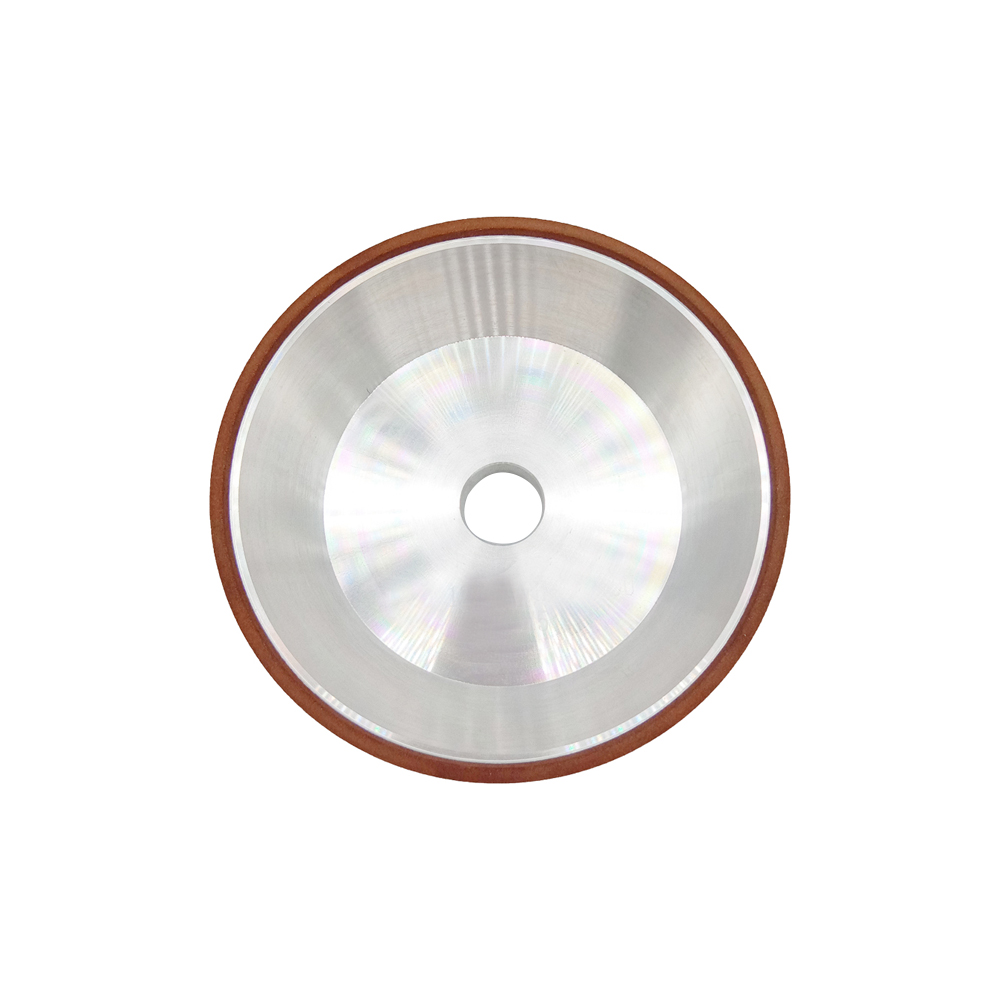

11V9 Broaching Tools Wheels
For grinding of chearance
The wheels can be used in Forst, Klink, others
Diameter 75-150mm
Bond: CBN
Grit:B126
Other dimensions available on request - Please indicate required D U X V° and H
| D | U | X | T | E | H |
| 75 | 2 | 10 | Custom | ||
| 100 | |||||
| 125 | |||||
| 150 | |||||
