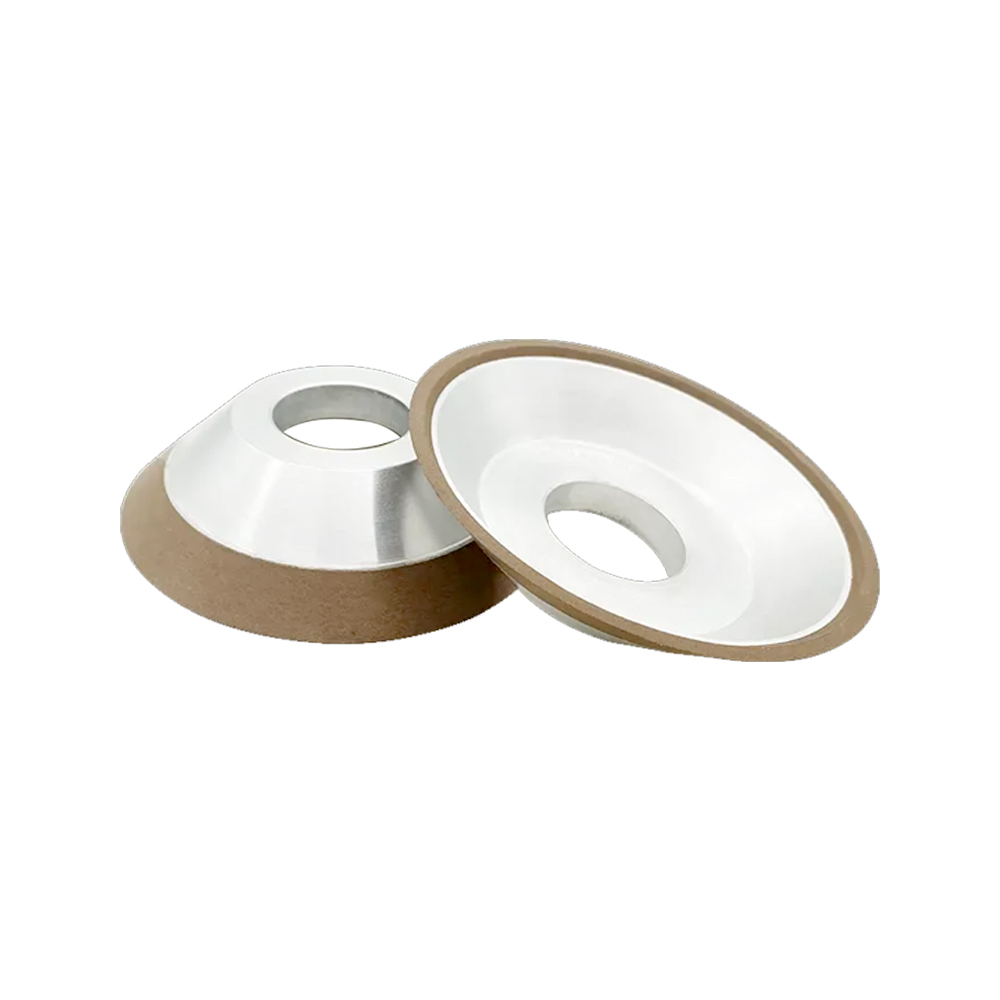

11A2 Tool Grinding Wheels
11A2
Quantity
11A2 Tool Grinding Wheels
For Cutting geometry on turning and planing tools, graving tools
Diameter 50-175mm
Bond:Diamond OR CBN
Grit:D64-D126,B126-B151

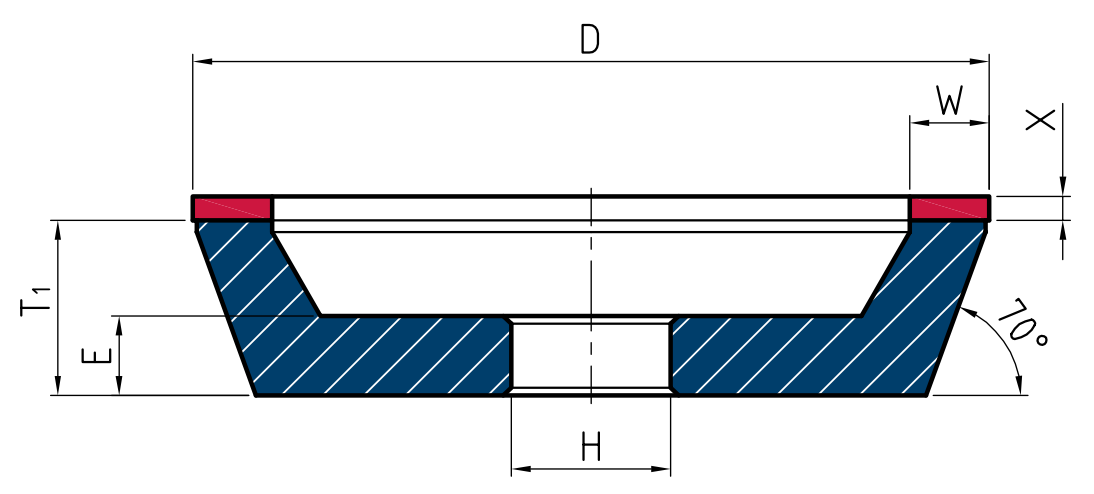

Other dimensions available on request - Please indicate required D U X V° and H
| D | W | X | T-X | E | H |
| 50 | 3-5 | 2-4 | 19 | 10 | custom |
| 75 | 3-10 | 19 | 10 | ||
| 100 | 3-15 | 23 | 10 | ||
| 125 | 6-15 | 23 | 10 | ||
| 150 | 6-20 | 23 | 10 | ||
| 175 | 10-20 | 23 | 12 |
